Barbacana

Secure by default. Simple by design.

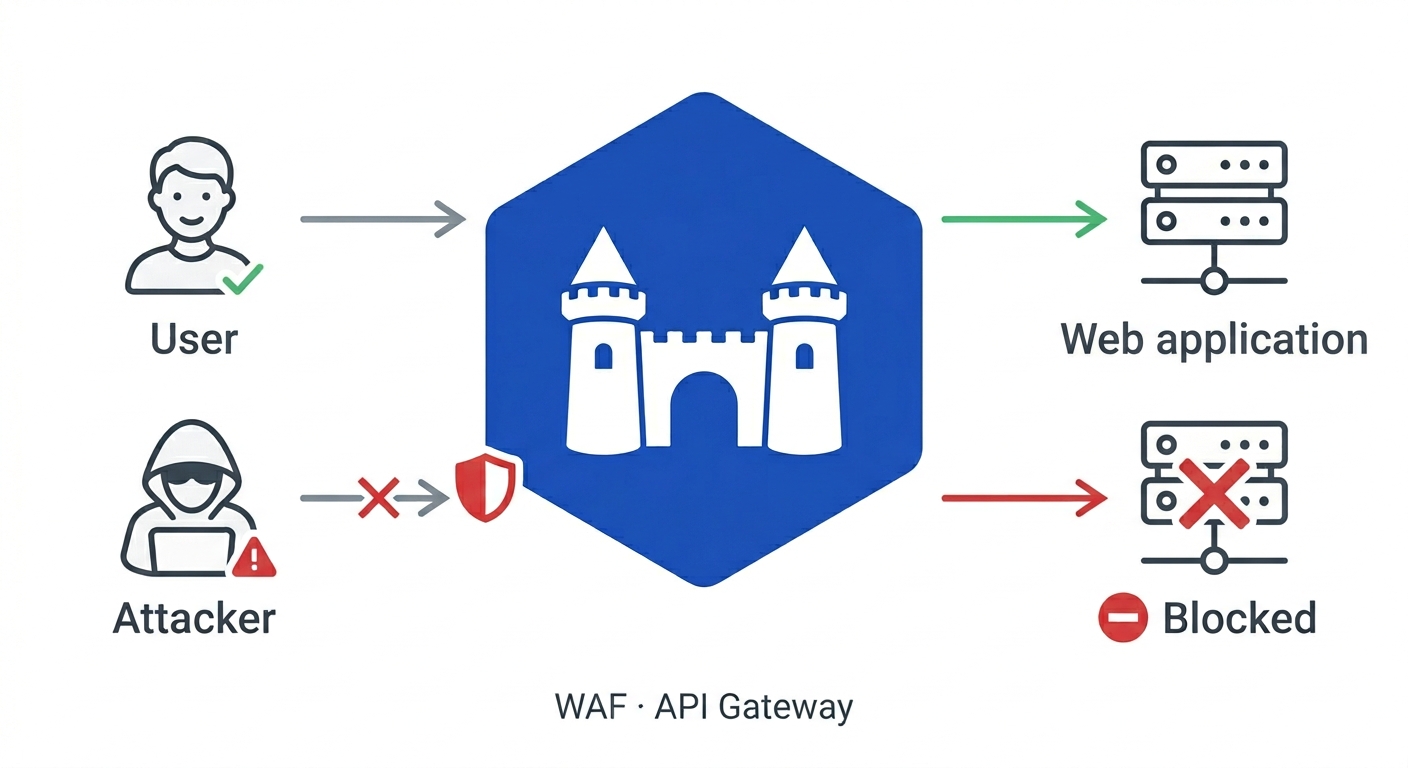

Barbacana is an open-source WAF and API security gateway. It sits between the internet and your application, inspects every HTTP request for known attack patterns — SQL injection, XSS, command injection, path traversal, and hundreds more — and blocks malicious requests before they reach your server.

Quickstart

waf.yaml

version: v1alpha1

routes:
  - upstream: http://your-app:8000

docker run --rm -p 8080:8080 \
  -v $(pwd)/waf.yaml:/etc/barbacana/waf.yaml:ro \
  ghcr.io/barbacana-waf/barbacana:latest

Every protection is on by default. Full quickstart →

And that minimalistic configuration works. Out of the box, with no extra tuning, Barbacana v0.5.0 scored 93.65% on GoTestWAF, an open-source WAF benchmark: it blocked 84% of attacks while allowing 91% of normal traffic, a strong balance between security and false positives. It also passes 99.75% of go-ftw, the official test suite from the OWASP CRS authors.

Sizing your deployment? 1 vCPU and ~130 MB of memory handles ~125 requests per second, with p99 latency under 40 ms for typical traffic. Full benchmark details →

Beyond the defaults

The defaults cover the happy path. When you need to tune a noisy route, terminate TLS, or roll out a new endpoint without blocking traffic — the config stays just as small.

182 protections on by default, 30 more opt-in

182 protections activate the moment you start Barbacana — no config required. A further 30 are available as opt-in: aggressive detection variants that need per-app tuning. For example, sql-injection-comments-in-json detects MySQL space-obfuscation, but can block ordinary JSON when active. The protection catalog details each protection, why they should be on or off, and how to tune them.

routes:
  - upstream: http://app:8000
    enable:
      - sql-injection-comments-in-json

Tune by name, not by rule ID

Protections have human-readable names. For example, the protection sql-injection-union-select detects UNION SELECT and ALTER TABLE patterns — instead of SecRuleRemoveById 942270. The code disables that protection in the /search route, where users can legitimately submit SQL snippets as part of their queries.

routes:
  - match:
      paths: ["/search"]
    upstream: http://search:8000
    disable:
      - sql-injection-union-select

Ship safely with detect-only

Roll out a new route in observe mode first. Every request is inspected and logged, but matches are forwarded instead of blocked — review the OCSF or ECS audit log, then flip the switch.

routes:
  - upstream: http://api:8000
    detect_only: true

Distributed traces

Ship W3C trace context to any OTLP collector — Jaeger, Tempo, or your vendor backend. Barbacana propagates traceparent to your server, so a single distributed trace continues from client, through the WAF, into your application.

tracing:
  enabled: true
  endpoint: otel-collector:4317

Accept only what the route expects

Declare the allowed methods and content types per route. Requests outside that envelope get a 405 or 415 before WAF rules even run.

routes:
  - match:
      paths: ["/api/*"]
    upstream: http://api:8000
    accept:
      content_types: [application/json]
      methods: [GET, POST]

HTTPS, no certificates to manage

Add a hostname. Barbacana provisions and renews Let's Encrypt certificates automatically, redirects :80 to :443, and uses a local CA for .localhost development.

version: v1alpha1
host: api.example.com
data_dir: /data/barbacana
routes:
  - upstream: http://app:8080

Validate requests against your OpenAPI spec

Mount a spec and Barbacana enforces it at the gateway — unknown paths, wrong methods, and malformed bodies are rejected before they reach your server.

routes:
  - match:
      paths: ["/api/*"]
    upstream: http://api:8000
    openapi:
      spec: /specs/api.yaml

Protect file upload endpoints

Constrain upload routes by file count, size, and MIME type. Barbacana inspects multipart requests and rejects oversized or unexpected file types before they reach your server.

routes:
  - match:
      paths: ["/upload/*"]
    upstream: http://uploads:8000
    accept:
      content_types: [multipart/form-data]
    multipart:
      file_limit: 20
      file_size: 2MB
      allowed_types: [image/png, image/jpeg, application/pdf]

Stop abusers, not real users

Limit requests per configurable window per client IP or header you select. Stop credential brute force on /login, scrapers, and noisy clients before they reach your server. Excess requests get a 429 with Retry-After; legitimate users never notice.

routes:
  - match:
      paths: [/login]
    upstream: http://app:8000
    rate_limit:
      requests: 2
      window: 1s
      source:
        type: ip

Single image · 500+ OWASP CRS rules · Apache 2.0

  Full quickstart   Protection catalog   Security model

Built on

Barbacana wraps Caddy (HTTP, TLS, reverse proxy), Coraza (WAF engine), and the OWASP CRS v4 (detection rules) — two decades of work by the security community made this project possible. Thanks to their maintainers and contributors.

Barbacana also runs ghcr.io/barbacana-waf/barbacana as the main image registry, with an identical mirror at docker.io/barbacana/barbacana.
